CNS 15156-200/IEC 62271-200

https://www.horngyu.com/web/image/product.template/20/image_1920?unique=f9bd940

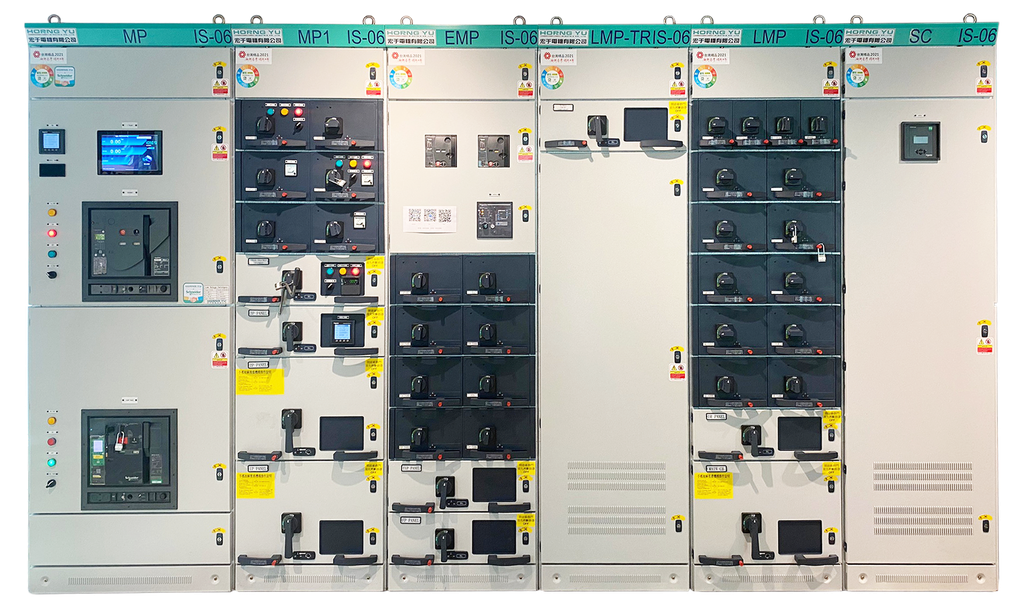

IS-06 low voltage switchgear and control equipment, suitable for AC rated, voltage not exceeding 1,000V or DC rated voltage not exceeding 1,500V assemblies, three-phase AC power systems with a rated current not exceeding 6300A, used for power transmission and distribution, with control, monitoring, and protection of circuits.
Passed international ILAC laboratory type tests, featuring a complete and reliable modular design, flexible unit assembly, providing a safer electricity environment for power systems, and is the preferred solution for power distribution systems.

Contact us

    This combination does not exist.

    Cabinet featuresProduct SpecificationsCabinet StructureCommon QuestionsFile DownloadNeed Assistance

    Chassis Features

    Main loop and control loop are 100% fully extractable, achieving fast replacement, single unit replacement without power interruption.

    The main electrical circuit plug spring uses stainless steel material, with high mechanical strength, capable of withstanding multiple uses of insertion and extraction.

    Manual and hand-cranked propulsion mechanism, making maintenance and replacement of the extractable unit easy and efficient.

    The main circuit plug adopts a copper sheet lamination style, with each set having an independent contact spring, demonstrating strong ability to withstand overcurrent.

    Each unit drawer has an interlock mechanism, with separate positions for separation, testing, and connection indication.

    Control plug separates the two rows of terminals up and down, with no interference between the wiring and output, making the wiring more convenient and aesthetically pleasing.

    The instrument panel adopts an open-door hollow structure for easy wiring, equipment installation, and inspection.

    Each unit has directional positioning functionality to ensure the pendant moves to the designated position without errors, eliminating zero-exchange malfunctions.

    Product Specifications

    Modular Unit Transformer Station


    Item

    Application Category

    Unit

    Quota Parameters

    1

    Complies with standards

    -

    CNS 15783-1, CNS61439-2, IEC 61439-1/2

    2

    Rated transfer voltage U

    V

    ≤1000V DC1500V

    3

    Frequency Fₙ

    Hz

    50/60

    4

    Rated Ultimate Breaking Capacity U62

    V

    2200

    5

    Rated impulse voltage Uₐ₀

    kV

    612

    6

    Main Circuit Current Rating niA (Horizontal Circuit)

    A

    630/800/1000/1250/1600/2000/
    2500/3000/3200/4000/5000/6300

    7

    Extraction unit vertical DC busbar nA

    A

    ≥1800

    8

    Assigned Short-Time Withstand Current kA

    kA

    100

    9

    Rated peak withstand current kA

    kA

    6220

    10

    Application type

    Class

    Draw type

    11

    Protection level of outer shell when box door is closed/when box door is fully open

    Class

    ≦IP4X/IP2X

    12

    Isolation Penalty Type

    Class

    Form 2a/2b, 3a/3b, 4a/4b

    13

    Appearance Method

    Class

    Upper/Lower

    14

    Box Door Color (Electrostatic Powder Coating)

    Class

    RAL 7035(Standard)

    15

    Box Material

    Class

    Electrogalvanized Steel Plate (Door Plate SPHC Baking Finish)

    16

    External Dimensions (mm)

    mm

    Height 2250 (including base)
    Width 600/800/1000/1200
    Depth 800/1000/1200
    (Depth includes box door requires additional 48mm)

    17

    Installation type

    Class

    Indoor Type

    18

    Altitude above sea level

    m

    62000

    Cabinet structure

    Extractable Switchgear

    a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0a0Front Exterior Viewa0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0Interior View

    • 1. Pendant
    • 2. Header (indicating manufacturer/plate name/model)
    • 3. Front flow arrangement inspection door
    • 4.1/4 Smoking Unit (200H)
    • 5. Circuit breaker operation handle lockable in 4 positions (ON TRIP OFF RESET)
    • 6. Extractable position indicator three-position (OPEN DISCONNECTED CLOSE)
    • 7.1/2 Extraction Unit (200H)
    • 8. Draw position unlock button
    • 9. Draw and advance the hand
    • 10. Load nameplate
    • 11.1 Extraction unit (200H)
    • 12. Door lock (available with 1 unit or more)
    • 13.2 Extractable Unit (400H)
    • 14. Extraction Swing-Out Operation Panel
    • 15.3 Extraction Unit (600H)
    • 16. Control Unit Installation Board Removable and Detachable a0 a0 a0 (1 unit or more)
    • 17. Front Lower Dust-Proof Ventilation Hole
    • 18. Top Panel Dustproof Vent
    • 19. Horizontal flow diversion
    • 20. Horizontal flow diversion support frame
    • 21. Exhaust unit side (each unit has a ventilation hole)
    • 22. Fully enclosed junction box type frame (11 fold reinforcement)
    • 23. Pendant Unit Retrieval (only available above 400H)
    • 24. Adjacent Disc Combination Hole
    • 25. Vertical flow diversion partition
    • 26. Grounding current discharge fixed plate
    • 27. Horizontal and Vertical Frame Connection Reinforcement Components
    • 28. Base (Optional)
    • 29.1/4 External Control Terminal for Smoking Unit x4

    Front view

    a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0Interior Rear Viewa0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0 a0Exterior Rear View

    • 30.1/4 Exhaust Unit Load Terminal x4
    • 31. 1/2 extractable unit external control terminal x2
    • 32.1/2 Extraction unit load terminal x2
    • 33. External Control Terminal for Extraction Unit
    • 34. Drawout Unit Load Terminal Table
    • 35.1/4 Drawout Unit 4 in 1 Power Clamp
    • 36. Vertical DC busbar isolation clamp
    • 37.1/2 Extraction unit 2 plus 1 power clamp
    • 38.1 Extraction unit power clamp (max 250AT)
    • 39. Vertical Busbar (Max 120x6t)
    • 40.2 Extraction Unit Above Power Clamp (Max 630AT)
    • 41. Rear upper dustproof ventilation hole
    •  42. Backflow Inspection Gate
    • 43. Back door
    • 44. Back Door Lock
    • 45. Rear Lower Dust-Proof Ventilation Hole

    Frequently Asked Questions

    A1

    IS-24 is an intelligent high-voltage power distribution board (high-voltage switchgear and control equipment) suitable for high-voltage distribution systems.
    IS-06 is an intelligent low-voltage draw-out type power distribution board designed for low-voltage distribution requirements.
    Both products are part of the intelligent power distribution board series from the electrical machinery, integrated with the iPanel power cloud management system, combining AIoT concepts, featuring self-diagnosis, automatic adjustment control, alarm and load optimization functions; they can also integrate cloud management platforms for remote monitoring and IoT energy consumption analysis, further enhancing system safety and efficiency, while modularization and iPanelCad automatic drawing tools can reduce design and production costs.

    A2
    IS-24 complies with IEC 62271-200/CNS 15156 and has passed type tests in international ILAC laboratories and Taiwan Power Research Testing Center.
    IS-06 complies with IEC 61439-2/CNS 61439-2 and has also been tested by ILAC and Taiwan Power Research Testing Center.
    It also collaborates with international brands like Schneider, Mitsubishi, and Siemens, integrating internationally certified components, with export and cross-border project competitiveness.

    A3
    IS-24 type test certification specification: Three-phase, 24 kV, 1250 A, short-time withstand current 25 kA × 3 s, 60 Hz, adopts LSC2B-PM interlocking control design, equipped with Siemens HVX24 circuit breaker and Nemie grounding switch.

    A4
    IS-06 is suitable for assigned voltage of 690 V and below, assigned current of 6300 A and below, and can withstand short-term currents up to 100 kA, providing a reliable solution for low voltage power distribution systems.

    A5
    Yes, Macroblock Microelectronics through the smart energy cloud management system iPanel Power Cloud, can remotely monitor power quality online. It also integrates solar power distribution panels and green energy solutions, supporting photovoltaic stations and smart grids, aligning with ESG and net-zero carbon emission trends.

    A6
    The electrical machinery introduced the ECO low-carbon power distribution board, reducing carbon emissions through materials and design, and provides carbon footprint tracking via cloud data, assisting enterprises in achieving ESG and net-zero emission goals.
    The ECO low-carbon power distribution board adopts integrated molding processing technology, reducing material usage and carbon emissions, while improving structural strength and durability, representing a product in line with international low-carbon trends.

    A7
    In the grand scheme of innovating the electrical machine with new tilting rotation technology, it can effectively reduce material splicing, thereby lowering manufacturing hours and material costs, improving operational efficiency, and achieving low-carbon environmental protection in response to carbon reduction policies.
    Additionally, conductive component woven soft copper belts and soft copper pieces can all be customized, featuring excellent conductivity and fast heat dissipation, widely applied in high and low voltage electrical panels and power engineering.

    A8
    Due to the traditional distribution panel only being able to 'passively supply power,' the IS series distribution panels integrate intelligent monitoring, early warning, and remote management, allowing for early detection of anomalies, reducing the risk of power outages and equipment damage, and avoiding production losses. It is especially suitable for high-demand applications in semiconductor, medical, green energy, and industrial fields.

    A5
     IS-24 and IS-06 equipped with smart energy cloud management system iPanel power cloud, can monitor electricity usage in real-time, analyze peak loads, and provide optimization recommendations to help users adjust electricity usage behavior and save on electricity costs.

    A5
     The IS series is user-friendly, equipped with a touch screen and cloud app, making it intuitive like using smart home appliances; meanwhile, Hongyu Electric provides comprehensive educational training and maintenance support, reducing learning costs.
