紅銅素材

https://www.horngyu.com/web/image/product.template/23/image_1920?unique=ea54d7c

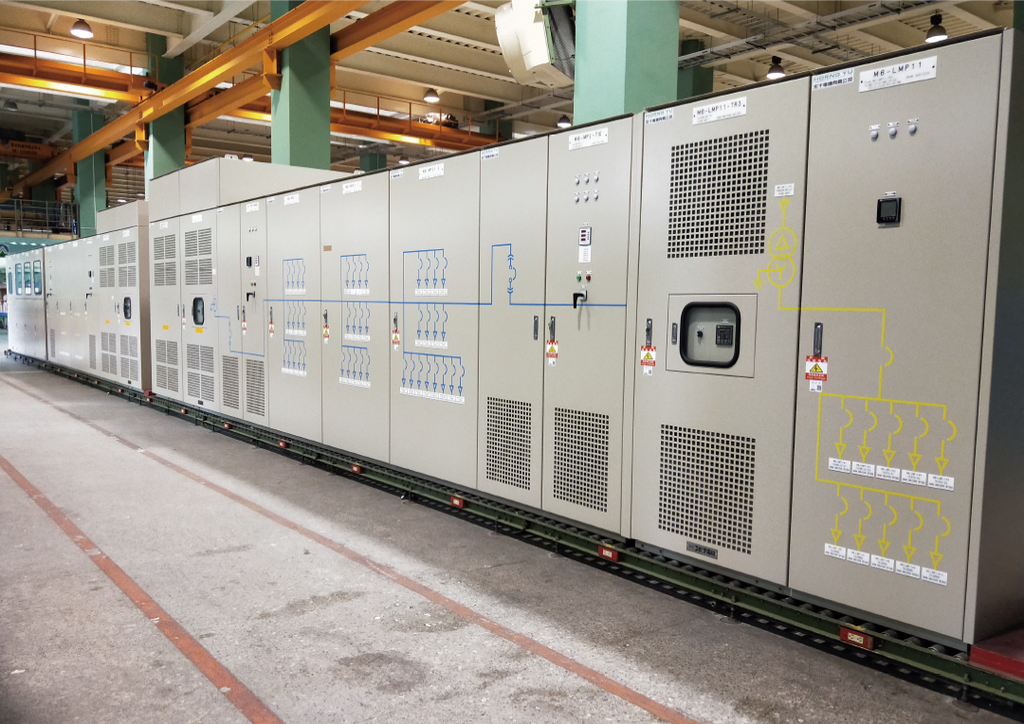

Used in high-voltage power systems for power distribution equipment, primarily for centralized management, distribution, and power protection. The locking mechanism improves operational safety and can be explained according to the model number, with suitable panel configurations for various scenarios. There are more options available for the main circuit breaker brand.

Contact Us

    This combination does not exist.

    Cabinet characteristicsProduct SpecificationsDownload FilesRequest Assistance

    Cabinet characteristics

    High security protection

    Equipped with mechanical and electrical dual-lock mechanisms to prevent misoperation and electric shock, ensuring operator safety.

    Modular Structure

    Loop path is independent, easy maintenance, convenient for future expansion and upgrade.

    Strong Stability

    Adopts high-quality components and fail-safe design, supporting long-term stable operation, suitable for high-pressure environments.

    High Customization Flexibility

    Can be customized based on the site and demand volume to create panel dimensions, wiring methods, and control functions.

    Compliant with international standards

    Manufactured in accordance with CNS 3990 and international standards, ensuring quality and performance.

    Product Specifications


    Compliant with international standards CNS 3990, CNS 3991, CNS 15156-200 EC 62271-200, IEC 62271-1

    Model Number

    Model Number Description

    First Model Number

    M

    Armored distribution box and control box

    P

    Compartment type power distribution box and control box

    C

    Cabinet-type distribution box and control box

    Second Edition

    X

    Fixed type components

    Y

    Move out type components

    W

    Extracted Component

    Third Model Number

    G

    Main circuit convergence discharge, continuity conductors and continuity parts are terminated by covering

    Various combinations like MW type, MWG type, PW type, CX type, etc.
