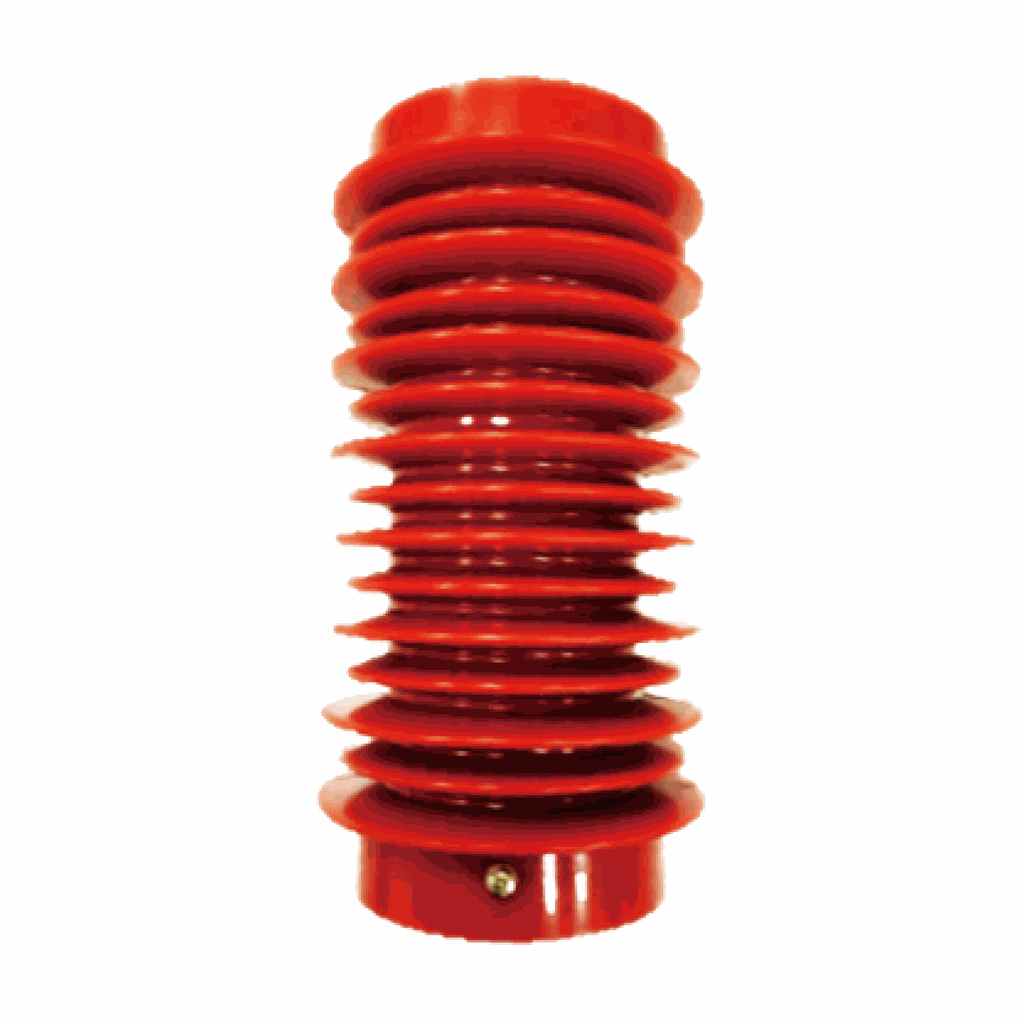

閉鎖型高壓驗電礙子組 VOLTAGE DETECTOR & CAPACITIVE INSULATORS

CNS 15156-200/IEC 62271-200

This product is used to provide switchgear installation circuit voltage status information and can lock the distribution panel door to prevent opening when high voltage is present. The indicator uses high brightness light-emitting diodes, with advantages of high brightness, low power consumption, stable performance, and high reliability. The test electrode uses epoxy resin casting and has high strength and high insulation performance, and it can also be used as an insulation barrier for supporting copper bars.

This product is suitable for indoor fixed electrical equipment with a voltage of 3.6 - 36kV and a frequency of 60Hz, used with test electrodes, it can reflect the high voltage circuit live status for convenient inspection by maintenance personnel.

Product Features

■ High brightness LED indicator light, low energy consumption, long lifespan.

■Enhance the safety of power distribution board operation, avoiding electric shock risks caused by misoperation.

■ Panel extraction design, convenient for on-site maintenance and replacement.

Maintenance is more convenient (extractive structure).

Support indicator light ON/OFF control.

■ Can simultaneously serve as a copper bar termination support, with integrated functions.

High-voltage insulator adopts epoxy resin casting, with high insulation and high strength.

■ Applicable voltage range (3.6kV ~ 36kV).

Technical Specifications

驗電指示器 Voltage Detector

Voltage Detector
Model	Rated Voltage (kV)	Defined Phase Function	Indicator Light ON/OFF Function	Panel Extraction Function	Lock Function (Working Power AC/DC/220V)
VD-1(Q)	3.6 - 36	◦	◦	◦	◦

Capacitive Insulators
Model	Rated Voltage (kV)	Commercial Frequency Withstand Voltage (kV)	Lightning Impulse Withstand Voltage (kV)	Flexural Strength (kN)	External dimensions (mm)
Cl-24	12–24	50	125	8	110 × 210
