CNS 15156-200/IEC 62271-200

Built-in humidity sensor in the dehumidifier, operable without output power.
It controls dehumidification devices or heaters to raise air dew point, preventing component corrosion and false alarms caused by dew point, and can also control cooling fans, warning lights, etc.
Application examples: switch cabinets, control cabinets, machine cabinets, electronic and communication devices, etc.

0; Contact Us

Product Features

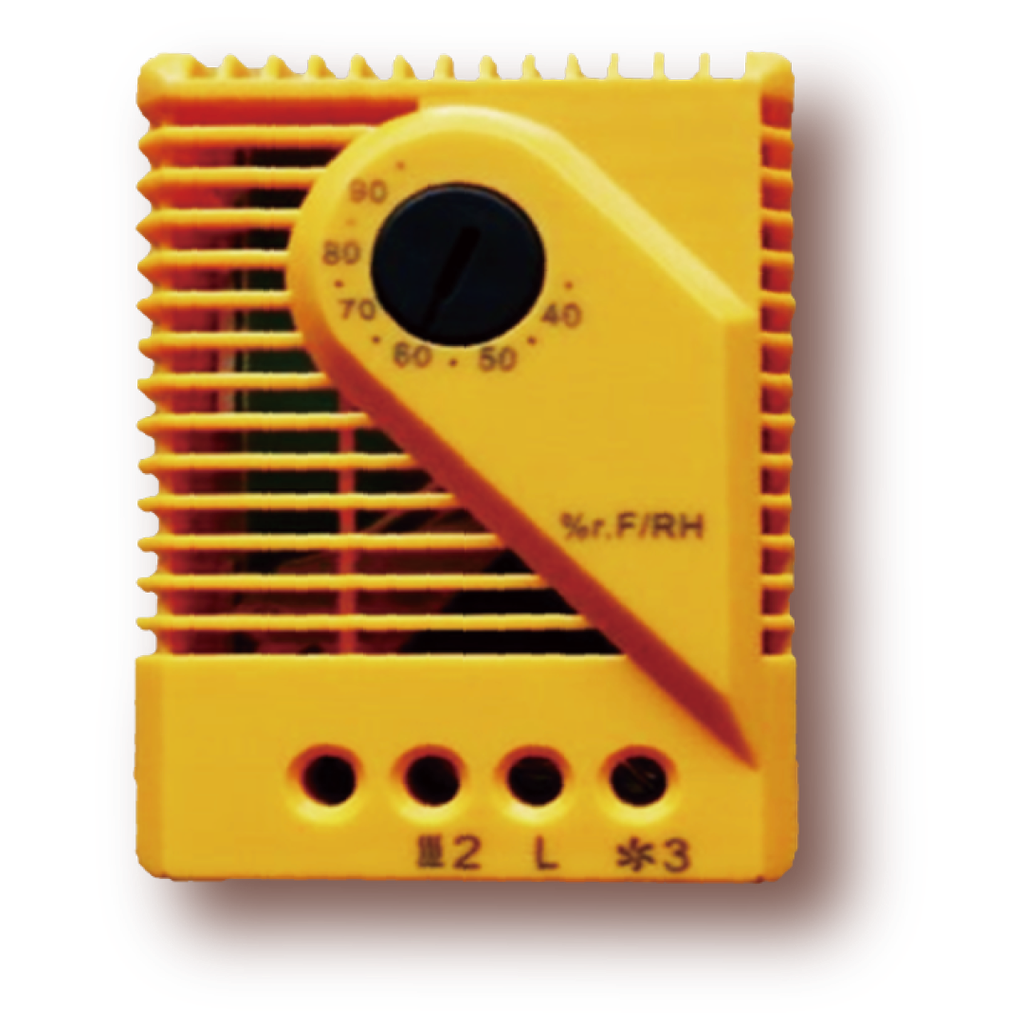

Mechanical Humidity Controller, operable without external power supply.

No power supply required: No additional power supply needed, easy to install.

Set range: 35% ~ 95%RH(±3%), fast response time (5 seconds).

High durability: Contact life exceeds 50,000 times, high reliability.

Built-in humidity sensor and dual micro-motion switch.

Immediate Response: Ability to quickly switch control to prevent equipment from malfunctioning due to excessive humidity.

Installed using DIN 35mm rail, suitable for control cabinets or electronic equipment.

Multifunction Control: Can simultaneously control dehumidifiers, heaters, fans, or warning devices.

The outer shell is made of ABS flame-retardant material (UL94-V0), safe and durable.

Technical Specifications

Type	MHC-01
Setting range	35%~95%RH(±3%)
Switch between different temperatures	Approx. 4%RH at 50℃
Airflow	Below 15m/s
Response Time	5 seconds
Contact	Dual micro-motion switch
Switch Voltage	Maximum limit 250VAC (Warning: Keep away from non-dew point environment)
Loading Capacity (minutes)	≥AC/DC20V is 100mA
Load capacity (maximum limit)	5A 250VAC resistive load 0.2A 250VAC inductive load PF>0.6 1A 50VDC/0.5A 75VDC inductive load L/S=3ms
Contact Resistance	≤50mΩ
Service Life	Over 50,000 times
Terminal	3P European terminal, maximum sealing of 0.5N-m. Suitable for single-core 2.5mm² wires or 1.5 mm² wires with pull tubes.
Installation	Vertical, 35mm DIN rail
Case Material	ABS, gray, UL94-V0 flame retardant.
Ambient Temperature	0~60℃(no condensation, no freezing)
Environmental Humidity	≤90%RH (non-condensing, non-freezing)
Protection level	IP20
Weight	Approx. 60KB
