CNS 15156-200/IEC 62271-200

https://www.horngyu.com/web/image/product.template/41/image_1920?unique=b7e886a

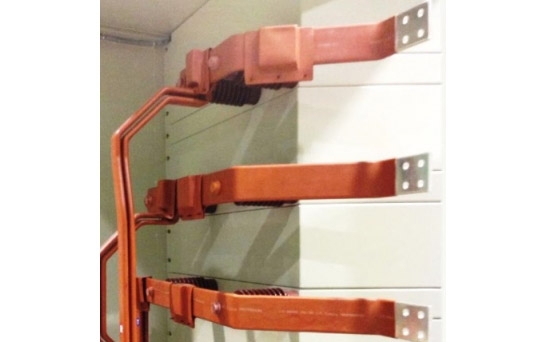

Self-developed continuation terminal box, effectively solving the terminal requirements for busbar and switch connections in distribution panels, can also be used for other high-voltage conductor insulation applications. The material is lightweight and easy to install and disassemble, with three types (L, T, I types) that can be widely used in various connections.

Contact us

    This combination does not exist.

    Product FeaturesProduct SpecificationCommon QuestionsFile DownloadNeed Assistance

    Product Features

    High Elasticity Structural Design

    Available in L, T, I types (opening direction) for customer selection, can also assist with customized orders.

    Desperate Protection Stability

    Meet high-pressure extinction level customer extinction needs, ensuring safety and quality.

    Product Specifications

    L-shaped COVER
    Model A B C D (A) Mainframe arrangement specification (C) Separation Arrangement
    L014525252510T*40-1/a610T*40-1/a6
    L025525252510T*50-1/610T*50-1/6
    L036525652510T*60-1/a610T*60-1/a6
    L045535552510T*50-2/a610T*50-2/a6
    L05105251054510T*100-1/10T*100-1/
    L06105251052510T*100-1/10T*100-1/
    L0710545553510T*100-2/a610T*100-2/a6
    L0810515551510T*100-1/10T*100-1/
    L0910535552510T*100-2/a610T*100-2/a6
    L10105251052510T*100-1/10T*100-1/
    L118525552510T*80-1/10T*80-1/
    L128555855510T*80-3/a610T*80-3/a6
    L138565856510T*80-3/a610T*80-3/a6
    L148525852510T*80-1/10T*80-1/
    L15105251052510T*100-1/10T*100-1/
    L16105451054510T*100-2/a610T*100-2/a6
    L178545854510T*80-2/a610T*80-2/a6
    L185525352510T*50-1/610T*50-1/6
    L194545454510T*40-2/10T*40-2/
    L204545454510T*40-2/10T*40-2/
    L21105451054510T*100-2/a610T*100-2/a6
    L22105651056510T*100-2/a610T*100-2/a6
    L23125651256510T*120-2/610T*120-2/6
    L248535451510T*80-2/a610T*40-1/a6
    L25125451254510T*120-2/610T*100-2/a6
    L26125251252510T*120-2/610T*80-2/a6
    L276525652510T*60-1/a610T*60-2/a6
    L286545654510T*60-2/a610T*60-2/a6
    L2965551055510T*60-3/Φ10T*100-2/a6
    L30125651256510T*120-2/610T*80-3/a6
    T type COVER
    Model A B C D (A) Mainframe arrangement specification (C) Separation Arrangement
    T014515451510T*40-1/a610T*40-1/a6
    T025515551510T*50-1/610T*50-1/6
    T036515651510T*60-1/a610T*60-1/a6
    T04105151051510T*100-1/10T*100-1/
    T055515551510T*50-2/a610T*50-2/a6
    T065535553510T*50-2/a610T*50-2/a6
    T07105151051510T*100-2/a610T*100-2/a6
    T088515851510T*80-1/10T*80-1/
    T098535853510T*80-2/a610T*80-2/a6
    T106515651510T*60-1/a610T*60-1/a6
    T115515551510T*50-1/610T*50-1/6
    T12125151251510T*120-1/10T*120-1/
    T13105151051510T*100-1/10T*100-1/
    T148515851510T*80-1/10T*80-1/
    T15105351053510T*100-2/a610T*100-2/a6
    T16105151051510T*100-1/10T*100-1/
    T178545854510T*80-2/a610T*80-2/a6
    T185555555510T*50-2/a610T*50-2/a6
    T19851058510510T*80-2/a610T*80-2/a6
    T20551055510510T*50-2/a610T*50-2/a6
    T21105351053510T*100-2/a610T*100-2/a6
    T22105351053510T*100-2/a610T*100-2/a6
    T234535453510T*40-2/10T*40-2/
    T245535553510T*50-1/610T*50-1/6
    T256535653510T*60-1/a610T*60-1/a6
    T266515651510T*60-2/a610T*60-2/a6
    T278555855510T*80-2/a610T*80-2/a6
    T28105551055510T*100-2/a610T*100-2/a6
    T29125551255510T*120-3/a610T*120-3/a6
    T30105351053510T*100-2/a610T*100-2/a6
    T31105351053510T*100-2/a610T*100-2/a6
    T32105351053510T*100-2/a610T*100-2/a6
    T33105851058510T*100-2/a610T*100-2/a6
    T34125351253510T*120-2/610T*120-2/6
    T356535653510T*60-1/a610T*60-1/a6
    T366515651510T*60-1/a610T*60-1/a6
    T375535553510T*50-1/610T*50-1/6
    T386535653510T*60-1/a610T*60-1/a6
    T39105351053510T*100-1/10T*60-1/a6

    I-type COVER

    Model

    A

    B

    C

    Applicable Specifications

    I01

    45

    15

    100

    10T*40-1/a6

    I02

    55

    15

    120

    10T*50-1/6

    I03

    65

    15

    140

    10T*60-1/a6

    I04

    105

    15

    220

    10T*100-1/

    I05

    85

    15

    120

    10T*50-2/a6

    I06

    85

    35

    180

    10T*80-1/

    I07

    85

    55

    180

    10T*80-3/a6

    I08

    85

    35

    200

    10T*80-2/a6

    I09

    105

    35

    240

    10T*100-2/a6

    I10

    45

    35

    100

    10T*40-2/

    I11

    55

    15

    55

    10T*50-1/a6-1

    I12

    55

    15

    55

    10T*50-1/a6-2

    I13

    125

    55

    180

    10T*100-3/ 6

    I14

    125

    35

    260

    10T*120-2/6

    I15

    105

    15

    180

    10T*40-1/6-1

    I16

    105

    55

    120

    10T*100-2/ 6-1

    I17

    65

    55

    140

    10T*60-2/a6

    I18

    65

    15

    140

    10T*60-1/a6-1

    I19

    85

    0

    180

    10T*80/0

    I20

    85

    15

    185

    10T*80/1-1

    I21

    45

    15

    45

    10T*40/1-2

    I22

    105

    35

    220

    10T*100-2/a6-2

    I23

    65

    15

    140

    10T*60-3/Φ

    I24

    55

    15

    55

    10T*50-2/Φ-1

    I25

    105

    75

    220

    10T*100-4/Φ

    I26

    105

    75

    290

    10T*100-4/-1

    I27

    105

    35

    105

    10T*100-2/a6

    I28

    85

    55

    85

    10T*80-3/a6

    I29

    65

    15

    65

    10T*60-1/a6

    Frequently Asked Questions

    Q1a0What types are there?

    A1

    L, T, I type, depending on flow arrangement specifications and actual usage range.

    A2

    Resistant to solvents, UV rays, mechanical impacts and general abrasion.

    A3
     Can be installed in various busbar arrangements, indoors or outdoors, and is not easily cracked.

    A4
     Does not soften or dissolve in high-temperature environments, maintaining complete insulation functionality.

    A5

    In case of fire, it can significantly reduce toxicity and fungal effects.
