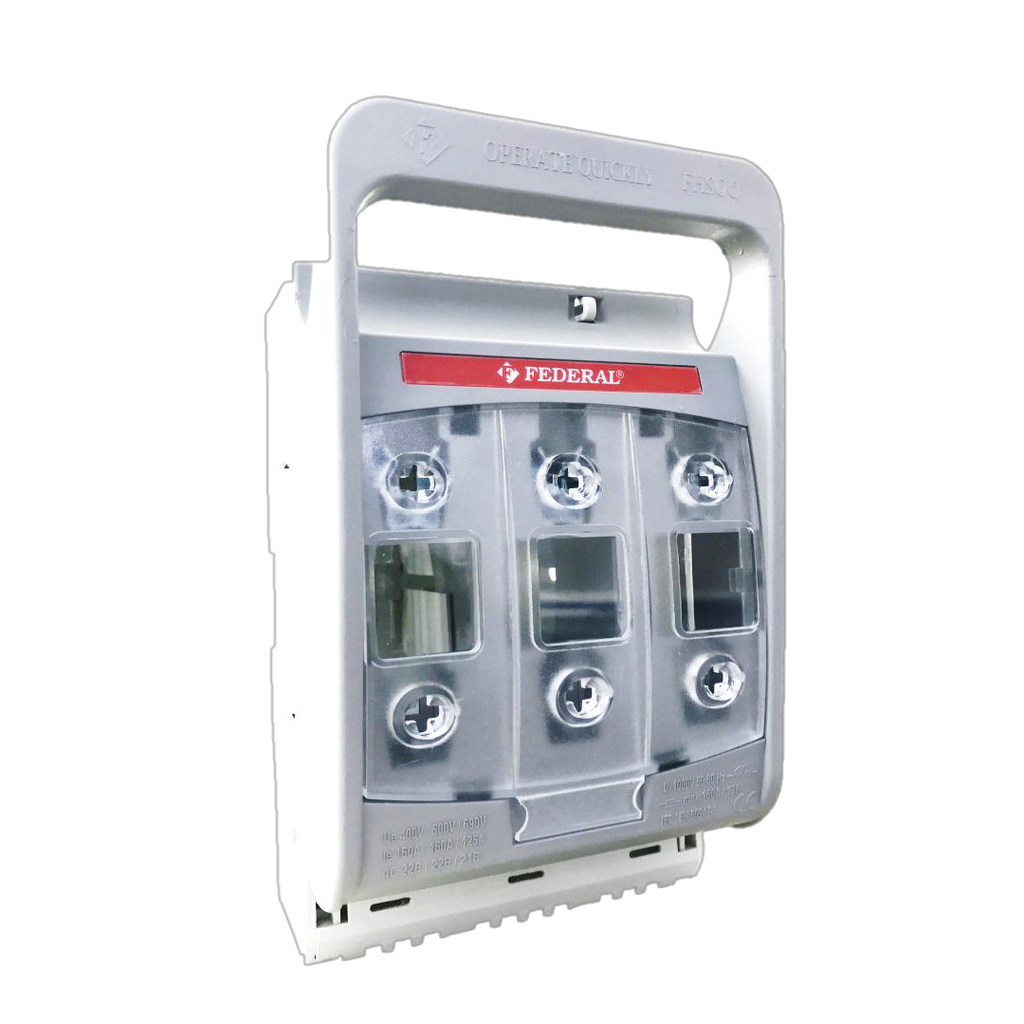

Fuse Isolating Switch :
The fuse isolating switch produced by the European FEDERAL Electric Group is a very safe and practical device. It protects the power system through simultaneous rapid disconnection of three poles and a protective outer shell.
Manufactured according to international IEC60947-3 standards and compatible with international NH dimensions. FEDERAL provides you with a stable power system and ensures the safety of life and property.
To ensure long-term service life, the fuse isolating switch uses reinforced thermoplastic materials and has high flame resistance. The conductive connections of the product are silver-plated, offering lower power loss and saving your energy consumption.

    This combination does not exist.

    Product Features

    • Humanized Design

    • Economic Practicality

    • High-Quality Aesthetics

    • Easy Operation

    • 160~630A Specifications Complete

    • European Manufacturing

    Technical Specifications

    Technical Specifications
    Product Model FHS-16O FHS-25O FHS-4OO FHS-63O
    Regular Electric Current
    (Ith)
    16O 25O 4OO 63O
    Pole Count 3 3 3 3
    Final voltage
    (Ui)
    75O 75O 75O 75O
    Impulse Withstand Voltage
    (Uimp) kV
    8 8 8 8
    Fixed Frequency 5O–6O 5O–6O 5O–6O 5O–6O
    Operating Voltage
    (Ue)
    4OO 5OO 69O 415 5OO 69O 415 5OO 69O 415 5OO 69O
    Usage Category AC23B AC22B AC21B AC22B AC22B AC21B AC22B AC22B AC21B AC22B AC22B AC21B
    Working Current
    (Ie)
    16O 16O 16O 25O 2OO 16O 4OO 315 25O 63O 5OO 4OO
    Short circuit current
    (NH Fuse) kA
    7O 7O 5O 7O 7O 5O 7O 7O 5O 7O 7O 5O
    Fuse Type
    NH
    OO O1 O2 O3
    Machine Life
    (operation)
    >2OOOO >2OOOO >2OOOO >2OOOO
    Electrical Lifespan
    (operation)
    2OO 2OO 2OO 2OO
    Conductive screen section
    mm²
    7O 12O 24O 2×185
    Each extreme efficiency loss
    W
    4 8 14 25
    Maximum–Minimum Terminal Torque
    Nm
    7•1O 14.52O 17%25 28.54O
    Kong Direct Path Ø M8 M10 M10 M12
    Weight kg 0.67 0.74 1.27 1.49
