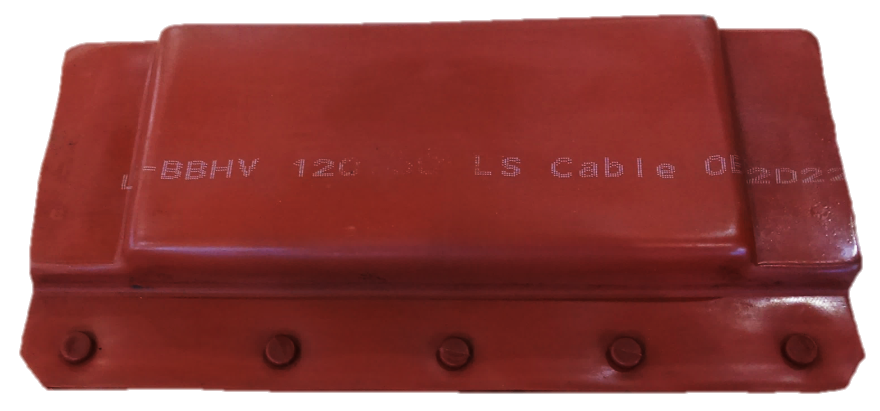

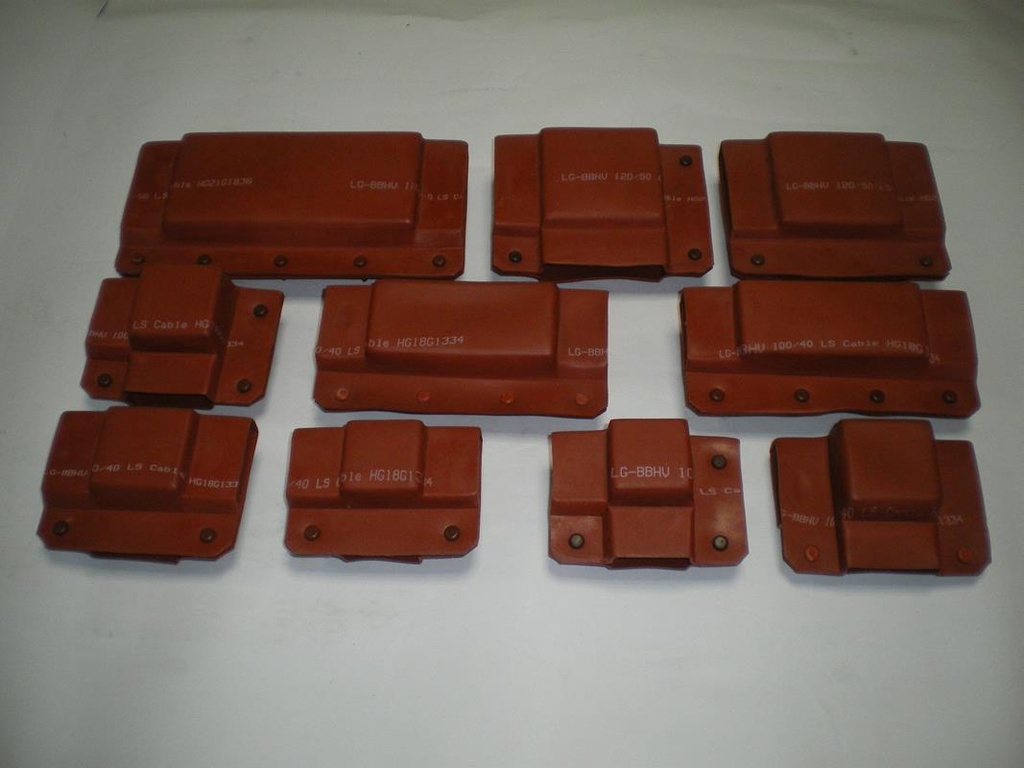

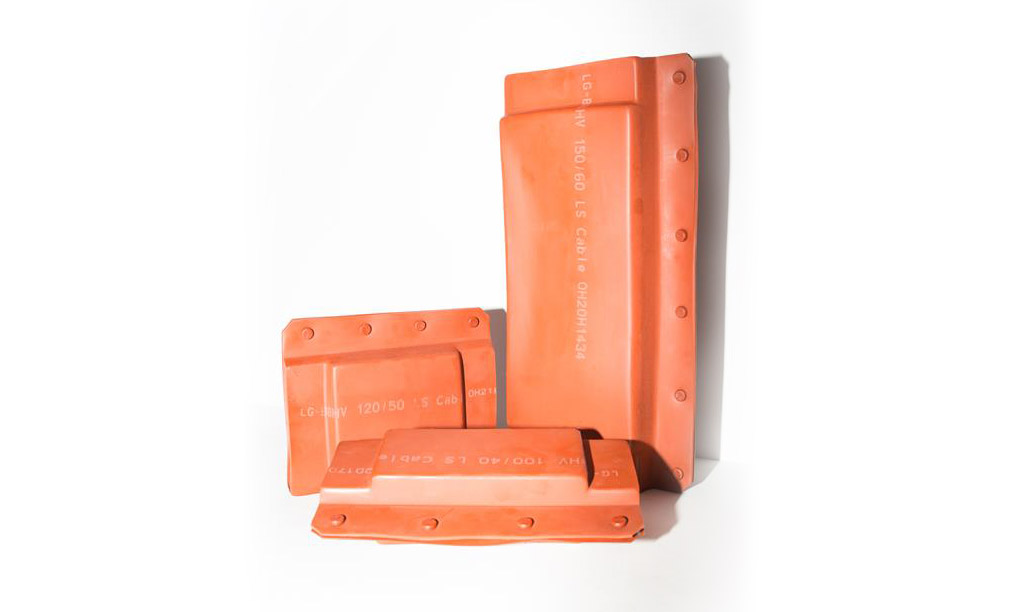

高壓絕緣保護蓋

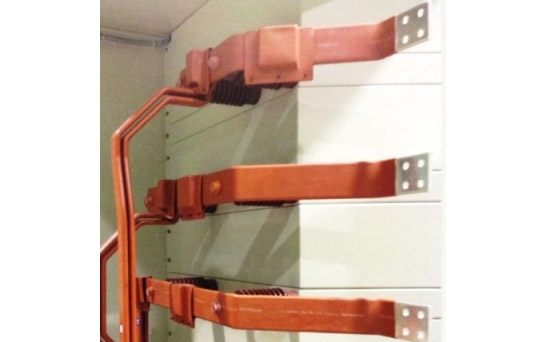

自行開發接續處絕緣被覆盒，有效解決配電盤內銅排和開關連接處絕緣需求，也可作為其他導體高壓絕緣使用，材料輕巧方便安裝及拆卸，並有三個類型( L、T、I型 )可廣泛應用於各種銜接。

產品特色

高彈性結構設計

具有L、T、I型(開口方向)可供客戶選擇，亦可協助客製化訂製。

絕緣防護穩定

高壓絕緣等級滿足客戶絕緣需求，確保安全與品質。

產品規格

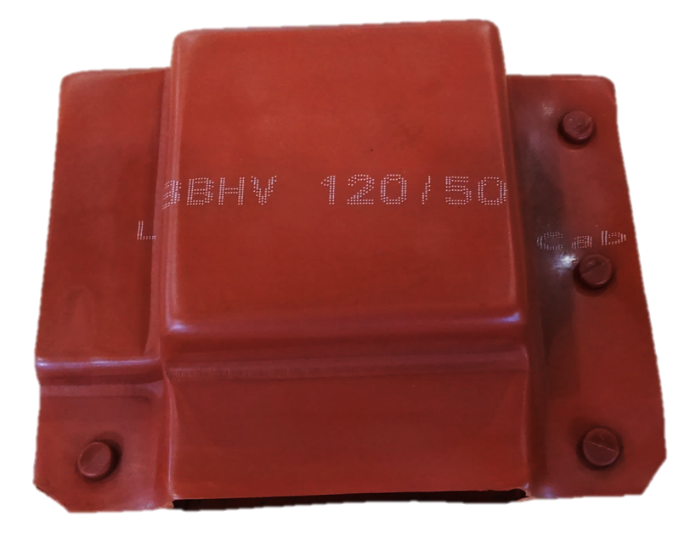

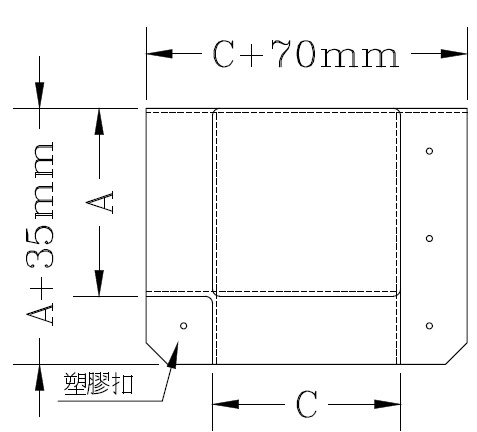

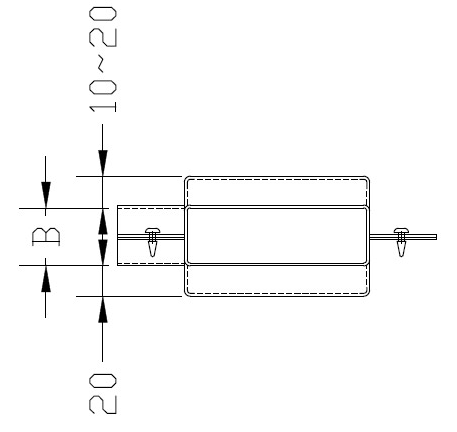

L型COVER
型號	A	B	C	D	(A)主體排規格	(C)分離部排規格
L01	45	25	25	25	10T*40-1/Φ	10T*40-1/Φ
L02	55	25	25	25	10T*50-1/Φ	10T*50-1/Φ
L03	65	25	65	25	10T*60-1/Φ	10T*60-1/Φ
L04	55	35	55	25	10T*50-2/Φ	10T*50-2/Φ
L05	105	25	105	45	10T*100-1/Φ	10T*100-1/Φ
L06	105	25	105	25	10T*100-1/Φ	10T*100-1/Φ
L07	105	45	55	35	10T*100-2/Φ	10T*100-2/Φ
L08	105	15	55	15	10T*100-1/Φ	10T*100-1/Φ
L09	105	35	55	25	10T*100-2/Φ	10T*100-2/Φ
L10	105	25	105	25	10T*100-1/Φ	10T*100-1/Φ
L11	85	25	55	25	10T*80-1/Φ	10T*80-1/Φ
L12	85	55	85	55	10T*80-3/Φ	10T*80-3/Φ
L13	85	65	85	65	10T*80-3/Φ	10T*80-3/Φ
L14	85	25	85	25	10T*80-1/Φ	10T*80-1/Φ
L15	105	25	105	25	10T*100-1/Φ	10T*100-1/Φ
L16	105	45	105	45	10T*100-2/Φ	10T*100-2/Φ
L17	85	45	85	45	10T*80-2/Φ	10T*80-2/Φ
L18	55	25	35	25	10T*50-1/Φ	10T*50-1/Φ
L19	45	45	45	45	10T*40-2/Φ	10T*40-2/Φ
L20	45	45	45	45	10T*40-2/Φ	10T*40-2/Φ
L21	105	45	105	45	10T*100-2/Φ	10T*100-2/Φ
L22	105	65	105	65	10T*100-2/Φ	10T*100-2/Φ
L23	125	65	125	65	10T*120-2/Φ	10T*120-2/Φ
L24	85	35	45	15	10T*80-2/Φ	10T*40-1/Φ
L25	125	45	125	45	10T*120-2/Φ	10T*100-2/Φ
L26	125	25	125	25	10T*120-2/Φ	10T*80-2/Φ
L27	65	25	65	25	10T*60-1/Φ	10T*60-2/Φ
L28	65	45	65	45	10T*60-2/Φ	10T*60-2/Φ
L29	65	55	105	55	10T*60-3/Φ	10T*100-2/Φ
L30	125	65	125	65	10T*120-2/Φ	10T*80-3/Φ

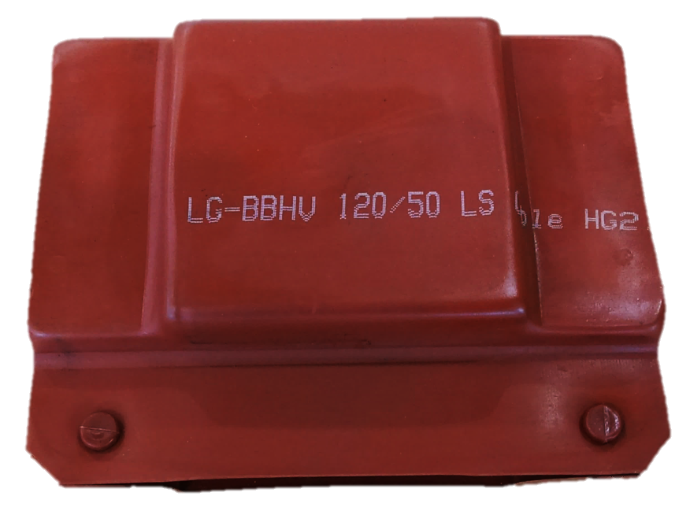

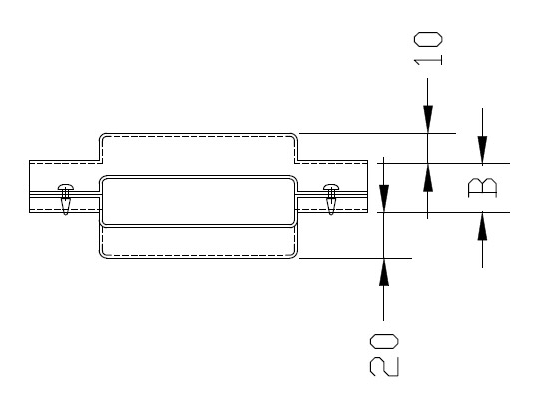

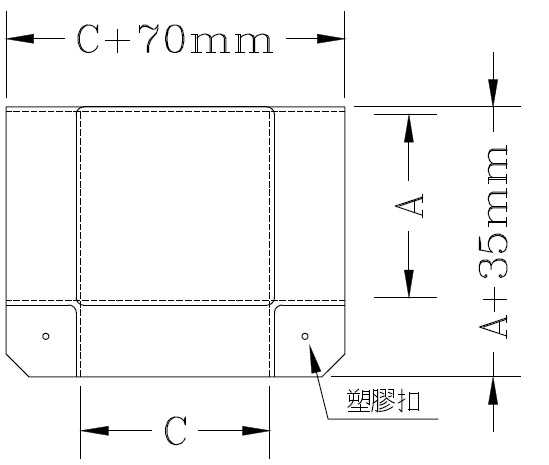

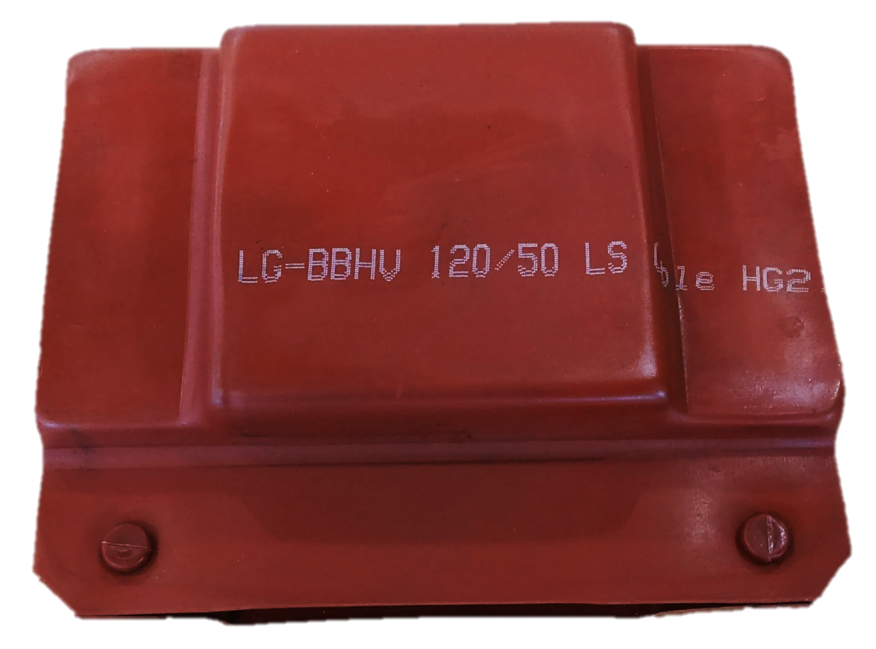

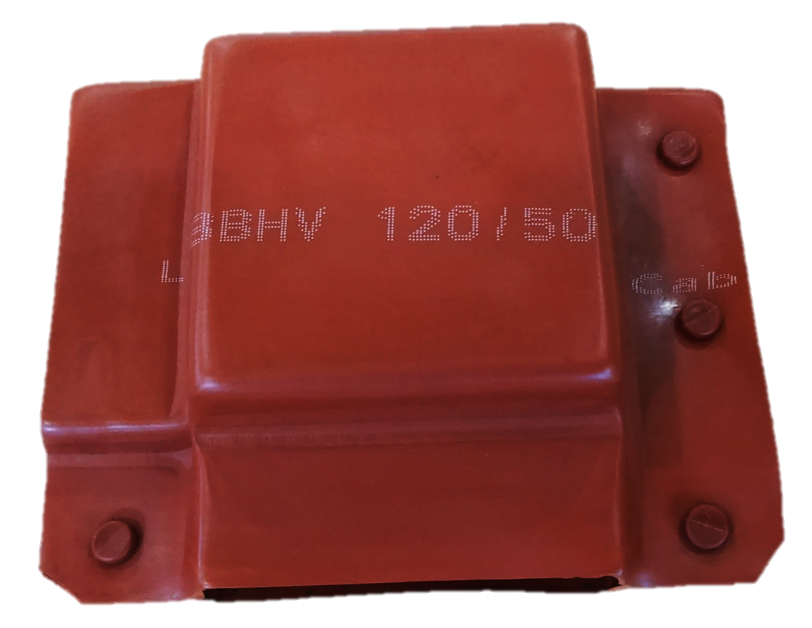

T型 COVER
型號	A	B	C	D	(A)主體排規格	(C)分離部排規格
T01	45	15	45	15	10T*40-1/Φ	10T*40-1/Φ
T02	55	15	55	15	10T*50-1/Φ	10T*50-1/Φ
T03	65	15	65	15	10T*60-1/Φ	10T*60-1/Φ
T04	105	15	105	15	10T*100-1/Φ	10T*100-1/Φ
T05	55	15	55	15	10T*50-2/Φ	10T*50-2/Φ
T06	55	35	55	35	10T*50-2/Φ	10T*50-2/Φ
T07	105	15	105	15	10T*100-2/Φ	10T*100-2/Φ
T08	85	15	85	15	10T*80-1/Φ	10T*80-1/Φ
T09	85	35	85	35	10T*80-2/Φ	10T*80-2/Φ
T10	65	15	65	15	10T*60-1/Φ	10T*60-1/Φ
T11	55	15	55	15	10T*50-1/Φ	10T*50-1/Φ
T12	125	15	125	15	10T*120-1/Φ	10T*120-1/Φ
T13	105	15	105	15	10T*100-1/Φ	10T*100-1/Φ
T14	85	15	85	15	10T*80-1/Φ	10T*80-1/Φ
T15	105	35	105	35	10T*100-2/Φ	10T*100-2/Φ
T16	105	15	105	15	10T*100-1/Φ	10T*100-1/Φ
T17	85	45	85	45	10T*80-2/Φ	10T*80-2/Φ
T18	55	55	55	55	10T*50-2/Φ	10T*50-2/Φ
T19	85	105	85	105	10T*80-2/Φ	10T*80-2/Φ
T20	55	105	55	105	10T*50-2/Φ	10T*50-2/Φ
T21	105	35	105	35	10T*100-2/Φ	10T*100-2/Φ
T22	105	35	105	35	10T*100-2/Φ	10T*100-2/Φ
T23	45	35	45	35	10T*40-2/Φ	10T*40-2/Φ
T24	55	35	55	35	10T*50-1/Φ	10T*50-1/Φ
T25	65	35	65	35	10T*60-1/Φ	10T*60-1/Φ
T26	65	15	65	15	10T*60-2/Φ	10T*60-2/Φ
T27	85	55	85	55	10T*80-2/Φ	10T*80-2/Φ
T28	105	55	105	55	10T*100-2/Φ	10T*100-2/Φ
T29	125	55	125	55	10T*120-3/Φ	10T*120-3/Φ
T30	105	35	105	35	10T*100-2/Φ	10T*100-2/Φ
T31	105	35	105	35	10T*100-2/Φ	10T*100-2/Φ
T32	105	35	105	35	10T*100-2/Φ	10T*100-2/Φ
T33	105	85	105	85	10T*100-2/Φ	10T*100-2/Φ
T34	125	35	125	35	10T*120-2/Φ	10T*120-2/Φ
T35	65	35	65	35	10T*60-1/Φ	10T*60-1/Φ
T36	65	15	65	15	10T*60-1/Φ	10T*60-1/Φ
T37	55	35	55	35	10T*50-1/Φ	10T*50-1/Φ
T38	65	35	65	35	10T*60-1/Φ	10T*60-1/Φ
T39	105	35	105	35	10T*100-1/Φ	10T*60-1/Φ

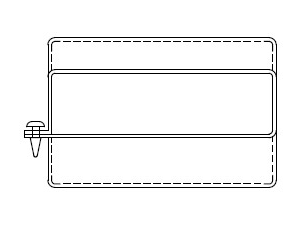

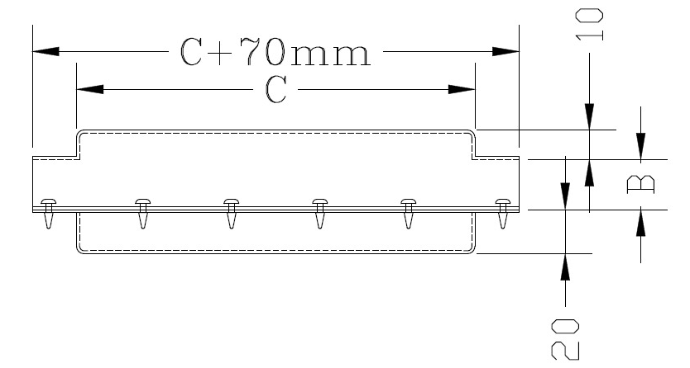

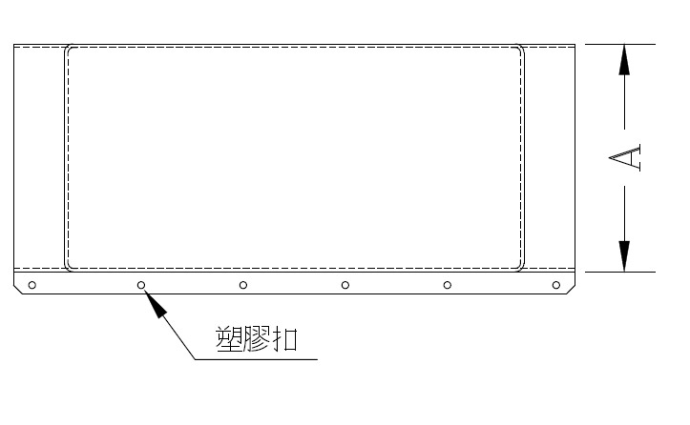

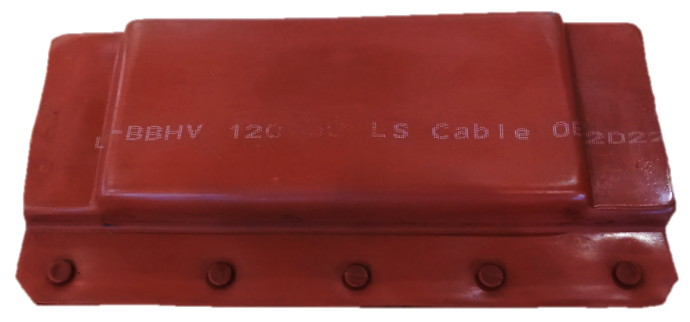

I型COVER
型號	A	B	C	適用規格
I01	45	15	100	10T*40-1/Φ
I02	55	15	120	10T*50-1/Φ
I03	65	15	140	10T*60-1/Φ
I04	105	15	220	10T*100-1/Φ
I05	85	15	120	10T*50-2/Φ
I06	85	35	180	10T*80-1/Φ
I07	85	55	180	10T*80-3/Φ
I08	85	35	200	10T*80-2/Φ
I09	105	35	240	10T*100-2/Φ
I10	45	35	100	10T*40-2/Φ
I11	55	15	55	10T*50-1/Φ-1
I12	55	15	55	10T*50-1/Φ-2
I13	125	55	180	10T*100-3/Φ
I14	125	35	260	10T*120-2/Φ
I15	105	15	180	10T*40-1/Φ-1
I16	105	55	120	10T*100-2/Φ-1
I17	65	55	140	10T*60-2/Φ
I18	65	15	140	10T*60-1/Φ-1
I19	85	0	180	10T*80/0
I20	85	15	185	10T*80/1-1
I21	45	15	45	10T*40/1-2
I22	105	35	220	10T*100-2/Φ-2
I23	65	15	140	10T*60-3/Φ
I24	55	15	55	10T*50-2/Φ-1
I25	105	75	220	10T*100-4/Φ
I26	105	75	290	10T*100-4/Φ-1
I27	105	35	105	10T*100-2/Φ
I28	85	55	85	10T*80-3/Φ
I29	65	15	65	10T*60-1/Φ

常見問題

Q1 有哪些類型？

A1

L、T、I型，視匯流排規格和實際使用範圍。

Q2 耐久性？

A2

可對抗溶劑、紫外光線、機械撞擊與一般性磨損之因素。

Q3 安裝方便？

A3
可安裝在各式匯流排中，室內或者室外，均不易斷裂。

Q4 可靠與穩定性？

A4
在高溫環境中不軟化溶解，保持完整絕緣功能。

Q5 安全性？

A5

遇火災時，可大幅降低毒性與腐蝕作用。
