CNS 15156-200/IEC 62271-200

■ Monitor and control the safety status of the distribution panel.
■ Provide immediate abnormal response to reduce accident risks.
■ Can be combined with other modules for expanded applications.

a0 Contact Us

Product Features

■ Intelligent safety control module designed specifically for power distribution panel solutions.

■ Enhancing the safety and intelligent management of electrical panel operations.

Modular design, easy to integrate into existing systems.

■ Modular structure for easy installation and maintenance.

■ Equipped with double-sided printed board structure (V5) to enhance reliability.

Suitable for different field applications, adaptable to various power distribution needs.

Technical Specification

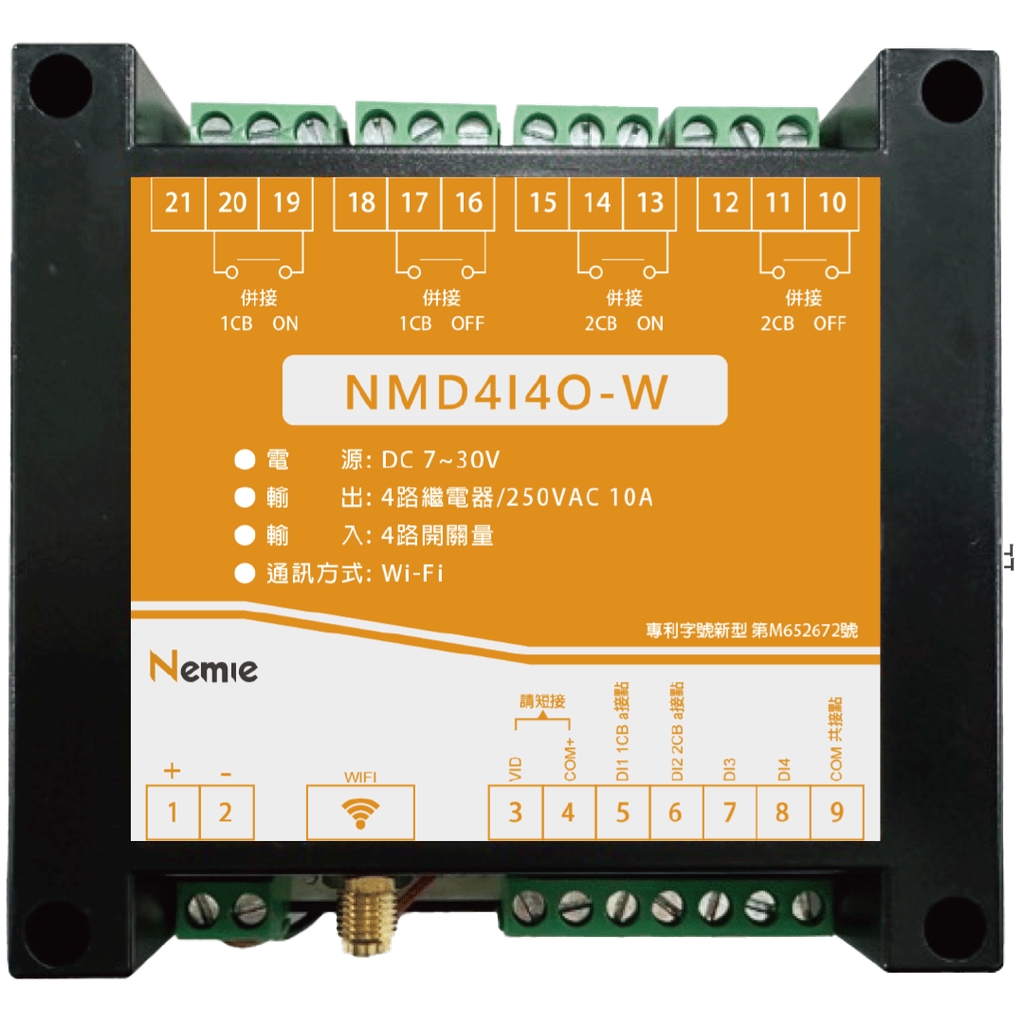

Model	NMD4I4O-W
Touch Capacity	10A/30VDC 10A/250VAC
Durability	100,000 times
Communication Method	Wi-Fi
Data Interface	SMA
Default Wi-Fi Name	JY_((represents a random combination of numbers and letters))
Default IP	192.168.10.1
Rated Voltage	DC 7-30V
Power indicator	1 red LED indicator (steady on when not communicating, flashing when communicating)
Output Indicator	4-way red LED indicator
Temperature Range	Industrial Grade -40℃~85℃
Dimensions	1159541mm
Installation Method	DIN35
